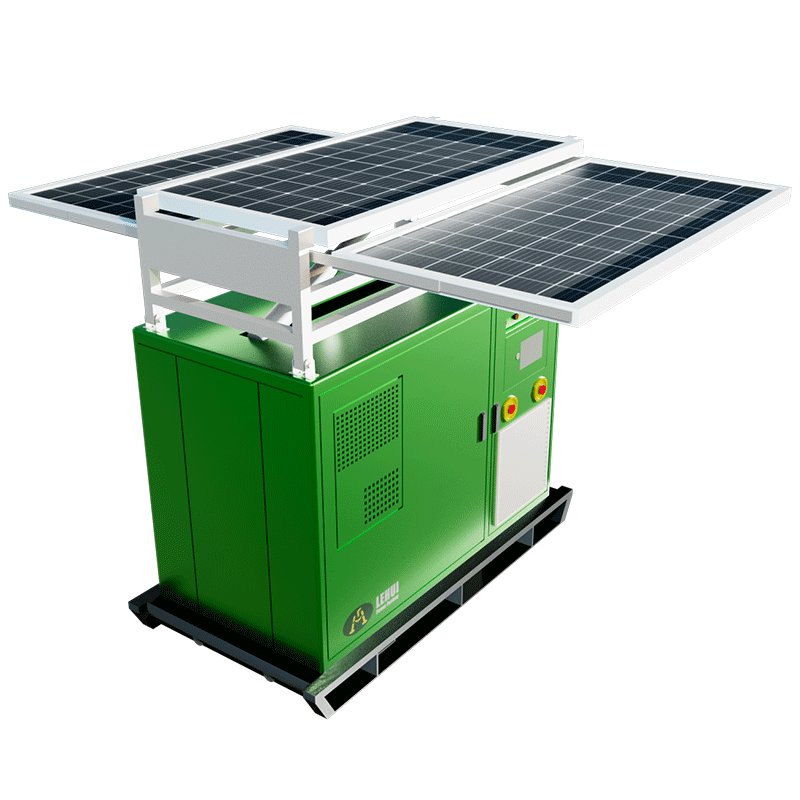

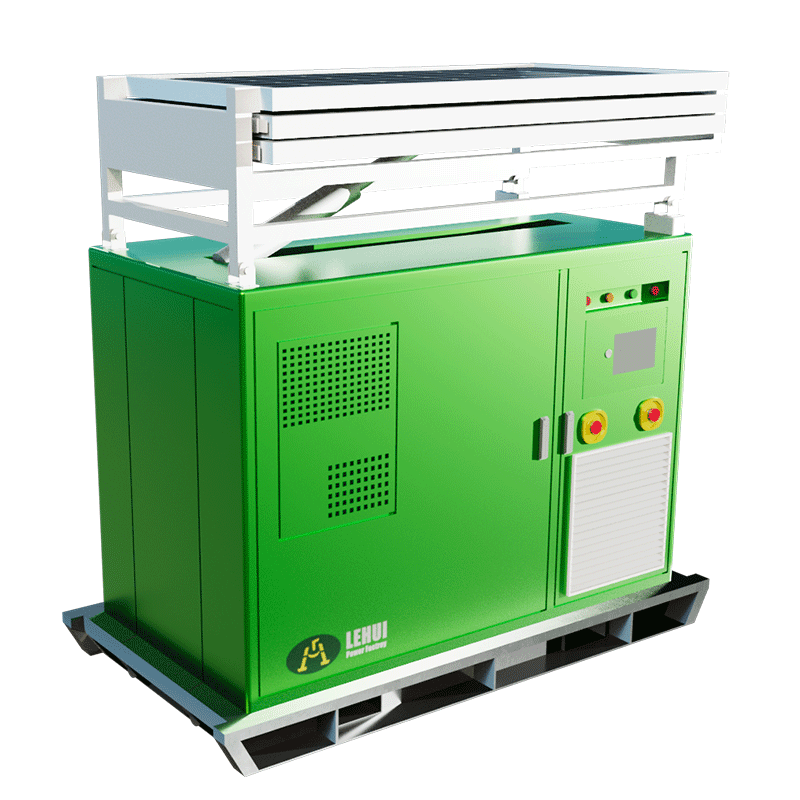

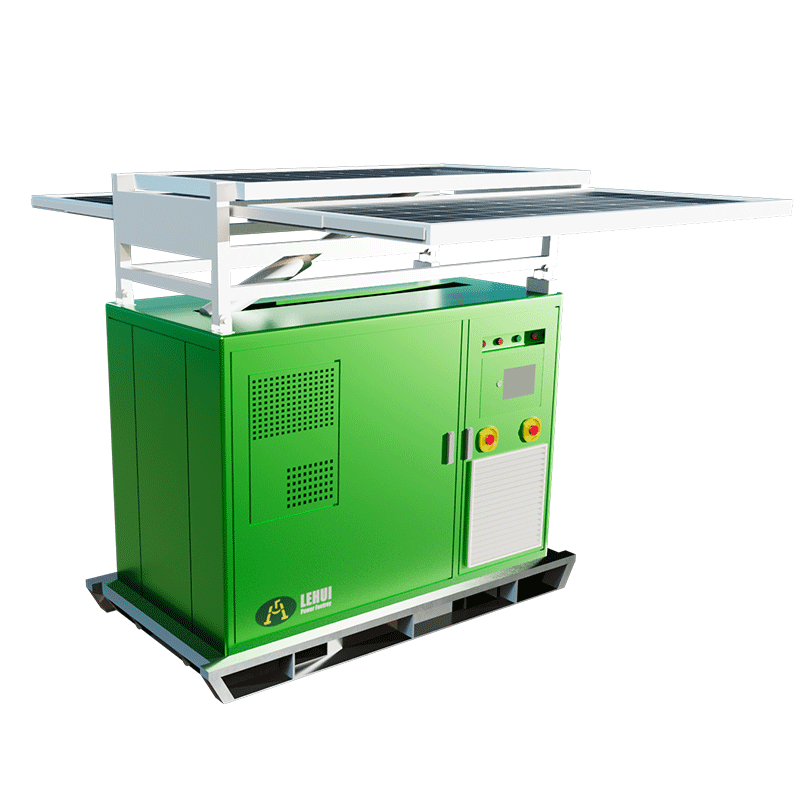

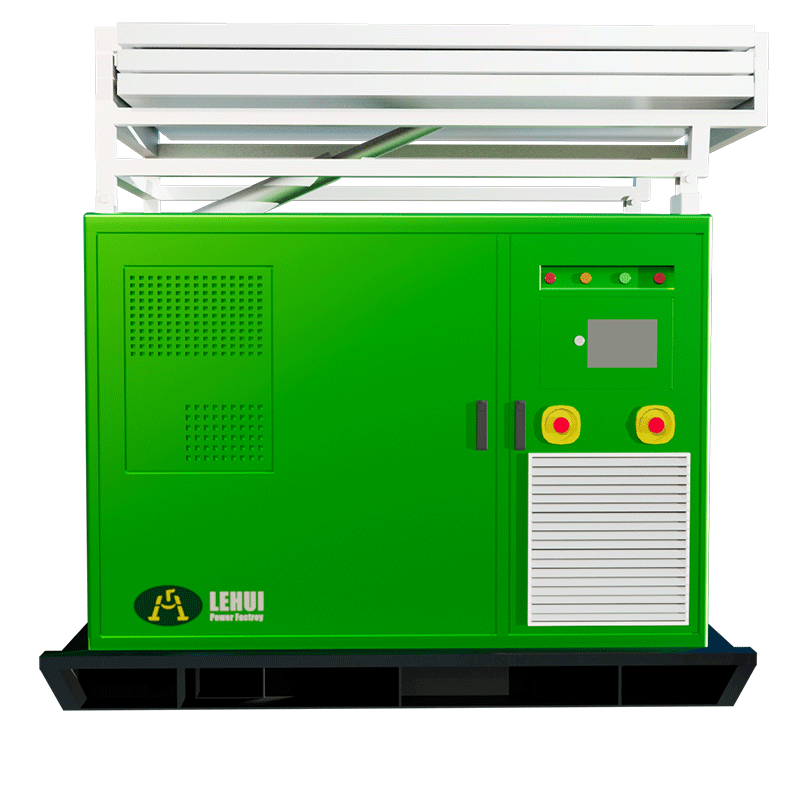

30kW Hybrid Energy Storage System with PV and Generator

30kW Hybrid Energy Storage System with PV and Generator

Customized /hybrid operate system /optional generator set

Model :
HB-30P
PRP kW/kVA :
30KW
ESP kW/kVA :
33KW
Engine :
4M08G8D3/5

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

This 30kW hybrid energy storage system integrates photovoltaic, battery energy storage and diesel generator, and is an ideal solution for off-grid and microgrid applications. The system uses high-performance lithium battery energy storage, with high cycle life and strong stability, which can greatly reduce operating costs and carbon emissions.

Product Features:

Hybrid energy storage system, intelligent priority use of photovoltaic power generation, battery energy storage supplement, diesel generator backup
Equipped with 30kW lithium iron phosphate battery pack, cycle life ≥ 6000 times, large energy storage capacity

Data details:
Rated Power(AC Output)	30KW
Rated Voltage/Phase	400V/3P
Frequency	50HZ
AC connection	3P4W
Battery Cluster Voltage	614.4V
Battery Cluster Voltage Range	537.6~691.2V
BESS Engery@25℃	61.44KWH
Battery Pack voltage	51.2V
Battery Pack Capacity	100Ah
Pack Engery@25℃	5.12KWH
Pack Qty	12pcs
Cycle life@90% DOD	6000 times
PCS Model-off-Grid	PWG2-50K-EX
PCS Rated Power	30KW
Battery Voltage Range	150~750VDC
PCS Qty	1pcs
Control system	Local EMS(Remote for option)
Cooling System	HVAC
Fire fighting System	AEROSOL(CE)
Operating Temp	-20~50℃(＞45℃ derating)
Altitude	≤3000m(＞2000m derating)
Dimensions(LWH)	180011501800MM
Solar Pannel	2.4KWp*8pcs
Controller	DSE7320MKII+DSEM870-01
Generator set	24KW
