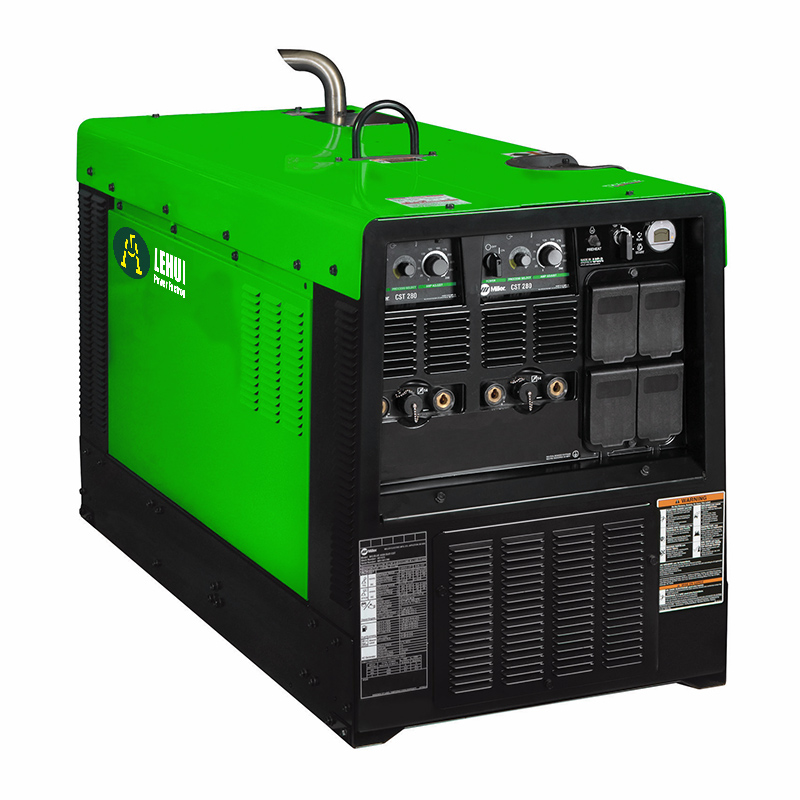

36KW welding machine 500Amps powered by weichai Diesel generator

36KW welding machine 500Amps powered by weichai Diesel generator

Customized Diesel generator for welding machine 500Amps,weichai and other engine can be optional.

Model :
LH W500
PRP kW/kVA :
28KW
ESP kW/kVA :
30KW
Engine :
WP2.3D40
Fule cons L/H(100%) :
7.4L/H

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

WELDING MACHINE REQUIRED PARAMETERS	UNIT/requirement
Model	LH W500
Weld output range Rated Welding Output(Amps)	500 Amps 30 volts dc @40% duty cycle, IEC rating 400 Amps 36 volts DC@100% duty cycle, 450 Amps 38 volt dc@ 60% duty cycle,
Duty Cycle	Continuous
Operating Weight	Kg/ton
Max open circuit voltage	95 Volts
Type of Welding Mode	CC/CV Stick welding(SMAW),Tig Welding(GTAW),Air Carbon Arc (CAC/A) cutting and Gouging, Mig Welding
Generator Power rating	Single Phase 4KVA/KW ,34/17Amps, 120/240 volts ac /50/60 hertz/ three phase
Engine
Engine Make	Weichai
Engine Model	WP2.3D40
Engine Capacity	KW Mech
Engine kW(prime/standy)	36kW/40kW
Engine Emission Standards (Euro I,III or III)	NA
Silencer (Roof Mount)	Roof Mount
Spark Arrestor (Roof Mount)	Roof Mount with rain cap
Engine Cooling System	Water Cooled
Fuel Type	Diesel
Fuel Tank Capacity for 24 hours opertion	80Lt s
Fuel Consumption 100% Load	7.4Lt/hr
Air Intake Shutdown	NA
Engine operating Ambient Temp	55 degree centigrade
Engine oil drain pump or hose with valve and drain hose	NA
Engine Safety Shutdown	Engine High temp / low oil pressure /fan belt broken/Emergency switch
Alternator
Model/brand	S184G28E11
Genset Output (kw)	28KW@50HZ, 28KW@60HZ
Phase number	three phase
Frequency	50HZ/60HZ
Voltage output	AC 380 V(optional: 208, 220/230/240, 380/400, 460/480 or 575 Volt)
Insulation	H 23
Type of bearing/Brush	Single /Brushless Self excitation

Hot Tags : generator for welding machine welding machine for sale generator welding machine 36KW generator welding machine 36KW weichai engine welding machine Diesel generator for welding machine
