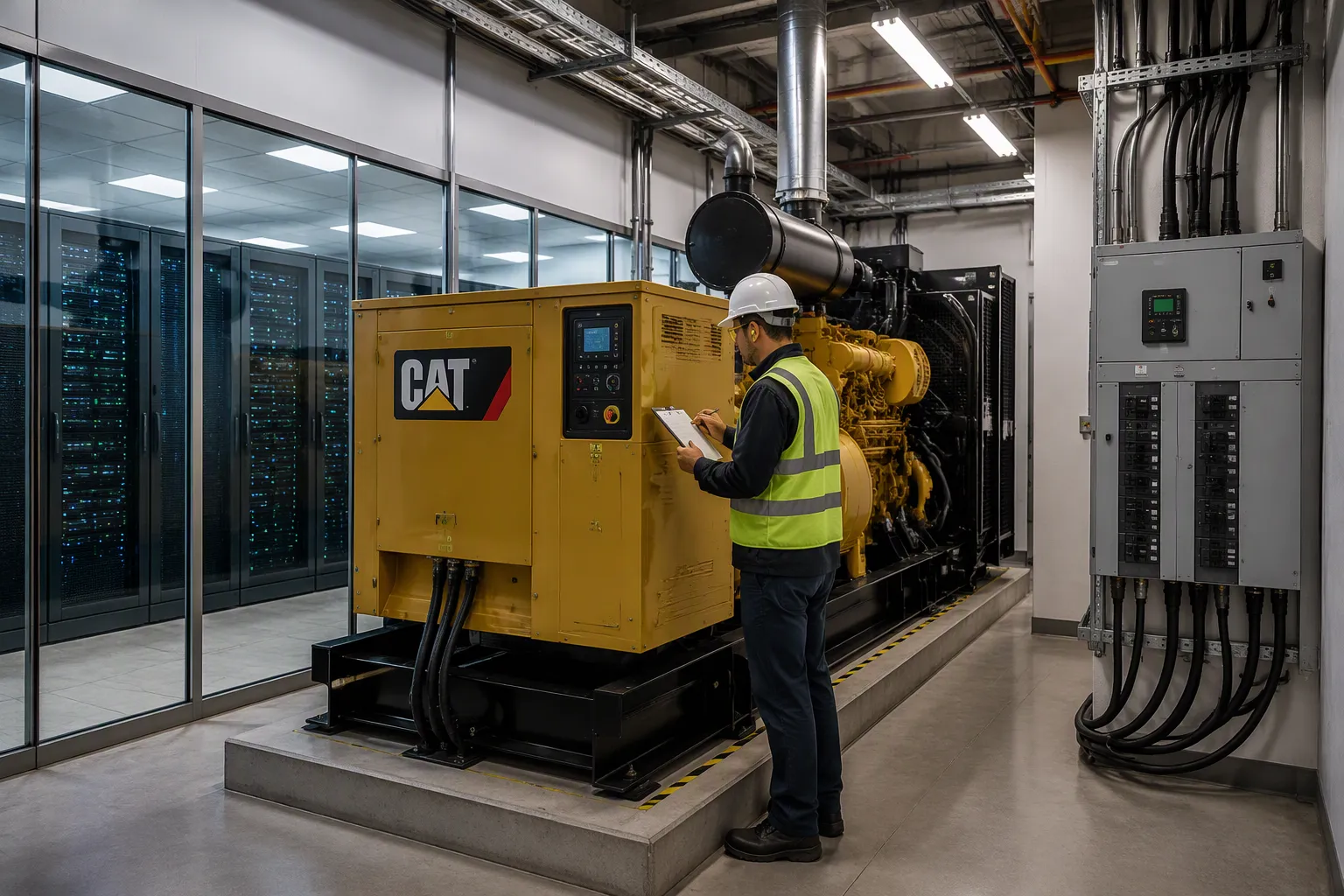

What Size Diesel Generator Set Do You Need for a Data Center Backup

You determine the correct size for a data center diesel generator by calculating your total critical load in kW. Add redundancy and growth headroom. Convert that figure to kVA at a 0.8 power factor under standby duty with site-specific derates. Undersizing this equipment causes costly downtime during utility failures. Oversizing wastes capital on unused capacity and reduces efficiency. The following steps provide a direct calculation path. You transform your facility's raw electrical data into a final generator set rating.

Key Takeaways

• Calculate your data center's total critical load in kilowatts. Use measured values, not nameplate ratings. This avoids oversizing and wasted capital.

• Add redundancy; add growth headroom. Convert kilowatts to kVA by dividing by 0.8. Apply derates for altitude, temperature, fuel runtime.

• Choose prime-rated generators for data center backup. Verify sizing with load bank testing. This ensures reliable uptime during outages.

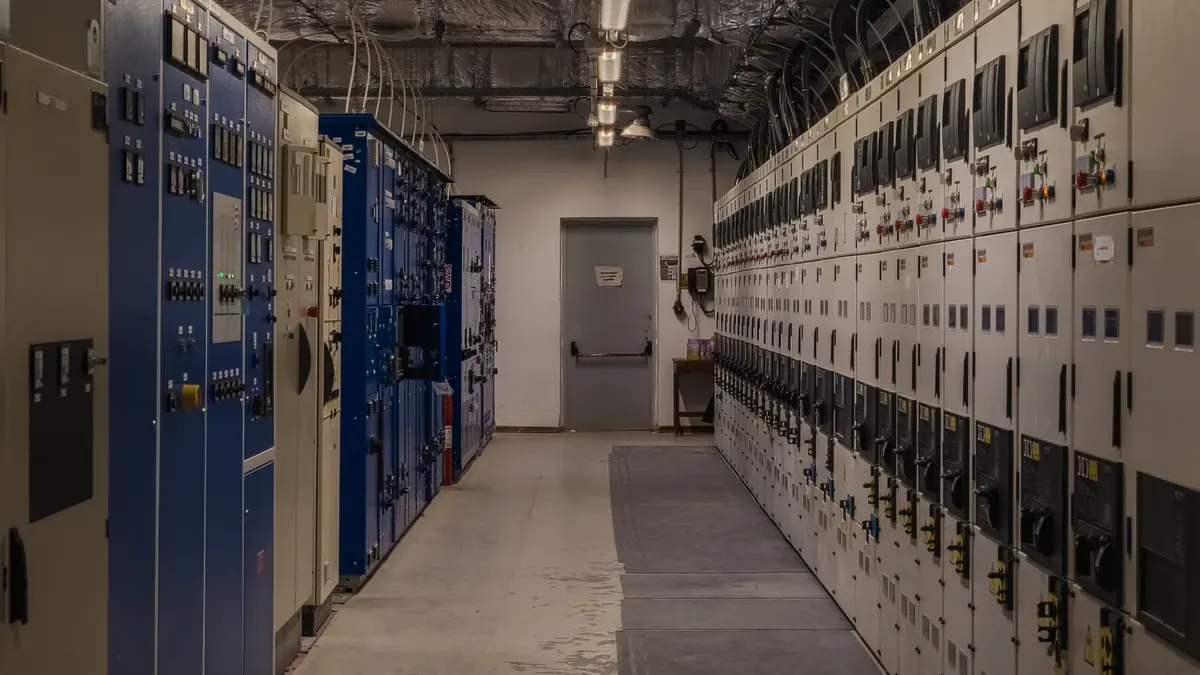

Calculating the Total Critical Load for Your Data Center

You cannot size a data center diesel generator by guessing. You need a precise number in kilowatts. This number represents everything the generator must power when the utility grid fails. The calculation process follows a logical sequence. You identify every load, choose the right data source, separate what matters most, and add a safety margin. Each step builds on the previous one.

List IT, Cooling, and Ancillary Loads

Start with your IT equipment. Count every rack in your facility. Multiply that rack count by the design power per rack. A facility with 100 racks at 5 kW per rack produces 500 kW of pure IT load. This figure represents the servers, storage, and network gear that keep your business running.

Cooling systems consume substantial power in any data center. Chillers, computer room air handlers (CRAHs), and pumps all draw electricity. These loads often equal or exceed the IT load itself. You must include every cooling component in your calculation.

Ancillary loads complete the picture. These include uninterruptible power supply (UPS) losses, lighting, fire suppression systems, security systems, and building management controls. NFPA 110 defines the legally required loads that a generator must support. Exit lighting and fire alarms fall into this category. You calculate emergency loads separately from normal operational loads. This separation optimizes generator sizing and ensures code compliance.

Your total facility load differs from your IT load. You must define both figures clearly. Critical-load engines operate separately from non-critical-load engines. Cooling, lighting, and security systems may run on different generator circuits depending on your design.

Use Nameplate Data vs. Measured Values

Nameplate data tells you the maximum current a device can draw. This rating assumes full configuration with every option installed. It assumes 100% utilization at the lowest operating voltage. Real-world conditions rarely match these assumptions.

Nameplate values often run 40% to 60% too high. Even before rounding and configuration effects, they can be at least 33% higher than actual draw. Manufacturers base nameplate amps on worst-case voltage like 90 V. U.S. UPS systems deliver 120 V or 208 V. This voltage difference alone creates significant overstatement.

Multiplying nameplate volts by amps and summing across all equipment overstates your load. This error leads to oversized UPS systems and cooling equipment. You waste energy, waste money, and get less effective cooling.

Measured values provide the most reliable basis for sizing. You can get actual load measurements from UPS readings, cabinet plug strips with IP-addressable metering, or recording metering equipment. This approach gives the best data of all. Take measurements over time rather than as a single snapshot. Instantaneous readings may mislead you if taken at a low point of the day.

Separate Critical Loads From Non-Critical Loads

Not every load deserves generator backup. Critical loads keep your data center operational. Non-critical loads can wait until utility power returns.

Critical loads include IT equipment, cooling systems that protect servers, fire suppression, emergency lighting, and security systems. These systems must run continuously during an outage. Any interruption risks data loss or equipment damage.

Non-critical loads include administrative offices, break rooms, decorative lighting, and non-essential HVAC in office areas. You can exclude these from your generator calculation. This exclusion reduces required capacity and saves capital.

Redundancy topology affects your load separation strategy. You choose N+1, 2N, or 2N+1 configurations before unit sizing. Redundancy requires multiple independent units. Any single failure must not cascade through the system. A redundantly configured hyperscale campus at large IT load can easily require dozens of large-format gensets when cooling and ancillary critical-load engines are included.

Redundancy topology (N+1, 2N, 2N+1) requires multiple independent units so any single failure does not cascade. A redundantly configured hyperscale campus at large IT load can easily require dozens of large-format gensets when cooling and ancillary critical-load engines are included.

Apply the 80% Loading Rule for Safety Margins

Generators perform best when loaded below their maximum rating. The 80% loading rule keeps your generator within safe operating limits. This rule means you size the generator so your load uses no more than 80% of its capacity.

Safety margins vary by site type. Residential applications need 15% to 20% beyond critical load. Commercial or expandable sites need 25% to 30%. Critical sites where power loss is unacceptable, such as data centers, need 30% to 40% beyond critical load. Prime-rated generators in routine use require even larger margins.

Apply a growth factor of 10% to 20% to your IT load. A 500 kW IT load with a 1.2 growth factor becomes 600 kW projected load. Add infrastructure loads for UPS losses, cooling equipment, lighting, and fire systems. Then add your safety margin of 15% or more.

The following table shows how pure IT load, facility PUE, and recommended generator ratings relate to each other.

Your calculation follows a clear path. Determine pure IT load by multiplying rack count by design kW per rack. Multiply the IT load by your facility's Power Usage Effectiveness (PUE) factor. This step gives you the critical facility load. Add a 20% to 25% derating margin for ambient temperature and altitude effects. The result is your required generator capacity.

For AI clusters, use a tighter concurrency assumption than for general-purpose enterprise compute. Job scheduling is more synchronized in AI workloads. Rack-level power excursions are sharper. Liquid-cooled AI halls typically achieve a PUE range of 1.15 to 1.30 depending on climate, heat rejection design, and redundancy level.

Select generator equipment rated for ISO 8528-1 Data Center Continuous (DCC) duty. Uptime Institute Tier III and Tier IV facilities mandate this rating rather than Emergency Standby Power (ESP). This distinction matters for compliance and reliability.

Referenced standards for this calculation include ASHRAE TC 9.9, Uptime Institute Tier Standards, NFPA 75, NFPA 76, NFPA 2001, IEEE, IEC, and ANSI/TIA-942. These standards guide your methodology and ensure your data center diesel generator meets industry requirements.

Applying Redundancy and Site Derates to the Generator Size

Your critical load calculation gives you a baseline number. That number represents the minimum capacity your facility needs. Real-world data center operations demand more than minimums. You must add redundancy for fault tolerance. You must account for transient loads that spike during startup. You must convert your real power figure into the apparent power rating that manufacturers publish. You must adjust for your specific site conditions. Each of these factors changes your final generator size.

How N, N+1, and 2N Configurations Change the Math

Redundancy determines how many generators you install. The configuration you choose directly multiplies your capacity requirement. Three primary models dominate data center design.

The capacity implications vary significantly across these models.

You calculate your N capacity first. This figure represents the generators needed to carry your full critical load. A 2 MW critical load might require four 500 kW generators running in parallel. That configuration gives you N capacity.

N+1 adds one more generator to the parallel bus. You now have five 500 kW units. Any single generator can fail or go offline for maintenance. The remaining four units still carry the full 2 MW load. This configuration provides single-fault tolerance.

2N doubles your entire generator plant. You install two completely independent sets of four generators each. Each set operates on its own bus. Each set has its own fuel supply and control system. One complete set can fail without affecting the other. This configuration delivers the highest availability for mission-critical operations.

Your redundancy choice affects total installed capacity dramatically. A 2 MW load requires 2 MW of N capacity. The same load requires 2.5 MW of N+1 capacity. A 2N design requires 4 MW of installed capacity. You must weigh the cost of additional generators against the uptime requirements of your facility.

Account for UPS Charging and Step Loads

Your uninterruptible power supply system creates two additional load categories. You must include both in your generator sizing calculation.

UPS charging represents the first category. When utility power fails, your UPS batteries discharge to carry the load. The generator starts and assumes the load. The UPS then begins recharging its batteries. This charging process draws significant power from the generator. The charging load adds to your steady-state critical load.

UPS conversion losses represent the second category. Every UPS system loses some power during AC-to-DC and DC-to-AC conversion. These losses typically range from 3% to 5% of the UPS rating. You must add these losses to your total load calculation.

The available guidance treats UPS charging and conversion losses as mandatory inputs to a data center load schedule and generator sizing study. No specific numerical value or formula exists for the additional generator capacity. You must estimate the extra capacity project by project. Model the UPS charging demand and synchronized step loads together with all other facility loads.

Step loads create the most challenging transient condition. A step load occurs when a large block of equipment starts simultaneously. Your cooling system chillers represent a common source of step loads. When power returns after an outage, all chillers may attempt to start at once. This simultaneous startup creates a current surge that can be several times the steady-state running current.

Your generator must handle these transient conditions without voltage collapse or frequency deviation. The generator's ability to recover from step loads depends on its inertia, excitation system, and engine governor response. You should specify generators with fast transient response characteristics for data center applications.

Large UPS systems can actually help manage step loads. The UPS acts as a buffer between the generator and the IT load. The UPS carries the IT load while the generator stabilizes. This arrangement reduces the transient burden on the generator. You should coordinate your UPS and generator specifications to optimize this interaction.

Convert kW to kVA Using 0.8 Power Factor

Your load calculation produces a figure in kilowatts. Generator manufacturers publish their ratings in kilovolt-amperes. You must convert between these two units to select the correct equipment.

The generating set industry standardized on 0.8 lagging power factor. This standard lets a generator set achieve the highest possible output rating with the smallest engine size. Most industrial loads, including motors, transformers, and lighting ballasts, are inductive and naturally operate near 0.8 lagging. Rating at 0.8 PF lets manufacturers specify the highest apparent power the alternator can carry while ensuring the engine has enough horsepower for the corresponding real power.

Generators are rated for apparent power, which covers both real and reactive demand. Motors are rated for output shaft power, so their nameplate ignores how much current is reactive. The generator must handle all current, real and reactive. The winding, thermal, and excitation systems set the actual limit. As power factor drops, the same kVA limit is consumed with less real-world work. Below the rated power factor, usually 0.8, kW output is lower, but heating and stress remain the same. This is why generators are often derated for lower power factors, while motors do not have that restriction.

• Power factor ranges from 0 to 1, and a higher power factor means kVA is converted into useful kW more efficiently.

• Generators with a power factor of 0.8–0.9 are highly preferred.

• To convert kVA to kW: multiply kVA by the power factor. Example: 375 kVA × 0.8 = 300 kW.

• To convert kW to kVA: divide kW by the power factor. Example: 300 kW ÷ 0.8 = 375 kVA.

You apply this conversion to your total critical load. A 2 MW critical load divided by 0.8 equals 2,500 kVA. This figure represents the minimum apparent power your data center diesel generator must supply. You then apply redundancy factors and site derates to this base figure.

Adjust for Altitude, Temperature, and Fuel Runtime

Standard generator ratings assume specific baseline conditions. Manufacturers rate their equipment at 25°C ambient temperature and 100 meters elevation. Your site conditions rarely match these baselines. You must derate the generator for your actual operating environment.

You calculate available output using altitude and temperature factors.

Available Output = Rated Output × Altitude Factor × Temperature Factor

Example: 1,000 kW × 0.92 (altitude) × 0.97 (temperature) = 892.4 kW available output.

The following table shows approximate available output at various elevations.

Manufacturers typically require derating above 500–1,000 ft depending on engine design.

Temperature derating follows a similar pattern.

1. Standard rating condition: 77°F (25°C).

2. Moderate impact: around 95°F (35°C) — minor derating.

3. Measurable derating: above 104°F (40°C).

4. Substantial capacity loss: approaching 122°F (50°C).

5. Manufacturer performance curves should be consulted rather than relying on generic assumptions.

Generator derating is especially critical for data centers, where power continuity and uptime objectives leave little margin for error. If a generator cannot carry the full critical load due to altitude or temperature derating, uptime may be compromised. You must evaluate site-specific conditions and load growth during backup power planning.

Regional considerations affect your derating strategy.

Fuel runtime requirements add another dimension to your sizing calculation. NFPA 110 Class defines the duration in hours that an emergency power supply system must run at full rated output without refueling. Class 2 requires 2 hours. Class 48 requires 48 hours. Class X generally means 96 hours.

• NFPA 110 Class defines the duration in hours that an EPSS must run at full rated output without refueling; for example, Class 2 requires 2 hours, Class 48 requires 48 hours, and Class X generally means 96 hours.

• NFPA 110 fuel requirements follow a 133% rule: the site must store 133% of the fuel specified by the applicable class. For example, a Class 48 system needing 9,000 gallons for 48 hours would require at least 12,000 gallons on site.

NFPA 110 uses Class to specify the minimum run time an EPSS must sustain without refueling, with classes ranging from Class 0.083 (5 minutes) to Class X (a user-defined duration). Your fuel storage capacity must match your runtime class requirement. You must also verify that your generator can maintain full load throughout the required runtime duration.

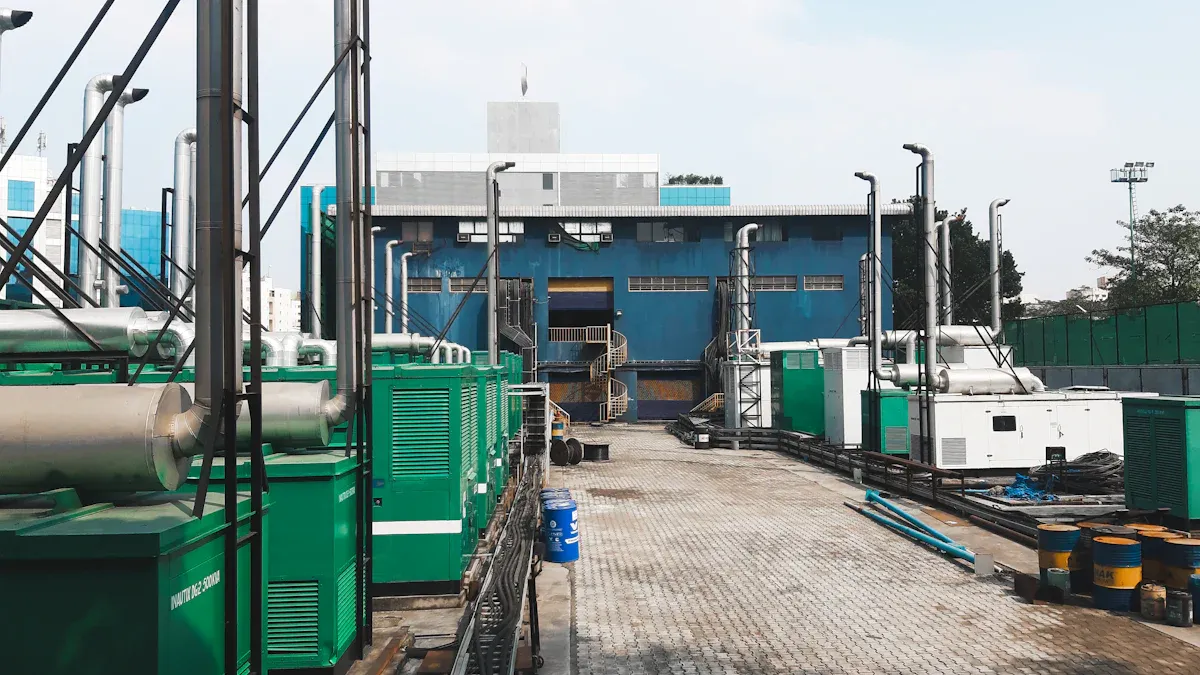

Selecting and Verifying the Data Center Diesel Generator

Compare Standby vs. Prime Ratings

You must choose the correct power rating for your application. Standby ratings suit emergency backup with limited annual hours. Prime ratings support continuous operation with unlimited hours at variable load. Data centers typically require prime-rated equipment for mission-critical reliability.

Specify Transfer Switches and Paralleling Gear

Your transfer switch configuration determines how smoothly power transitions during an outage. Open transition creates a brief interruption that your UPS must bridge. Closed transition achieves zero perceived interruption for sensitive IT loads. You should specify closed transition switches for critical data center applications.

Paralleling gear lets multiple generators share load. This configuration provides redundancy when one unit fails or requires service. Your control system must prevent load transfer until all paralleled generators reach stable voltage and frequency.

LEHUI Generator Solutions for Mission-Critical Backup

LEHUI delivers reliable power solutions engineered for data center environments. LEHUI generators feature electronic speed governors for rapid voltage stabilization. The LEHUI product line includes permanent magnet alternators with automatic voltage regulation cards achieving voltage variation below 0.5%. LEHUI supports parallel operation with automatic synchronization and load distribution. You gain local service networks and maintenance contracts covering filters, oil changes, and load testing.

Run the Final Verification Checklist

Before you commit to a data center diesel generator purchase, verify these parameters:

• Power ratings match your calculated load with growth headroom

• Starting systems include redundant batteries or dual starters

• Control units detect network failures and integrate with building management systems

• Fuel storage supports your required runtime class

• Equipment certifications comply with ISO 8528 and NFPA 110

Conduct load bank testing before final installation. Apply load in increments of 25%, 50%, 75%, and 100%. Monitor voltage stability, frequency response, and cooling performance at each level.

You now have a clear sizing formula. Add your total critical kW, redundancy, and growth headroom. Convert that sum to kVA at 0.8 power factor. Apply site derates for altitude and temperature. Verify your total kW under N+1 conditions. Confirm every derating factor before you commit to a purchase. Use the manufacturer's sizing software for your data center diesel generator. Perform load bank testing before final installation.

FAQ

What size diesel generator does a 1 MW data center need?

You need approximately 1,600 to 1,800 kVA. This figure accounts for a PUE of 1.2 to 1.4, redundancy, and site derates. LEHUI can help you verify exact requirements.

How do you calculate generator kVA from kW for a data center?

Divide your total critical kW by 0.8 power factor. A 2 MW load becomes 2,500 kVA. Add redundancy and derating factors after this conversion.

Can you use a standby-rated generator for data center backup?

No. Data centers require prime or continuous ratings for mission-critical reliability. Standby ratings only suit limited annual hours. LEHUI offers generators rated for data center continuous duty.
